BURSTING STRENGHT TESTER SINGLE HEAD PRINTER MODEL

Name: BURSTING STRENGHT TESTER SINGLE HEAD PRINTER MODEL
Brand: PAPER PACKAGING LAB TESTING INSTRUMENTS
Price: 58499.0 INR
Availability: InStock

Price 58499.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BURSTING STRENGHT TESTER SINGLE HEAD PRINTER MODEL Specification

Power Supply
Electric

Features
Good Quality

Voltage
110-215 Volt (v)

Operate Method
Manual

Hardness
Yes

Automation Grade
Semi-automatic

Material
MS

Usage
Industrial

BURSTING STRENGHT TESTER SINGLE HEAD PRINTER MODEL Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
15 Days

About BURSTING STRENGHT TESTER SINGLE HEAD PRINTER MODEL

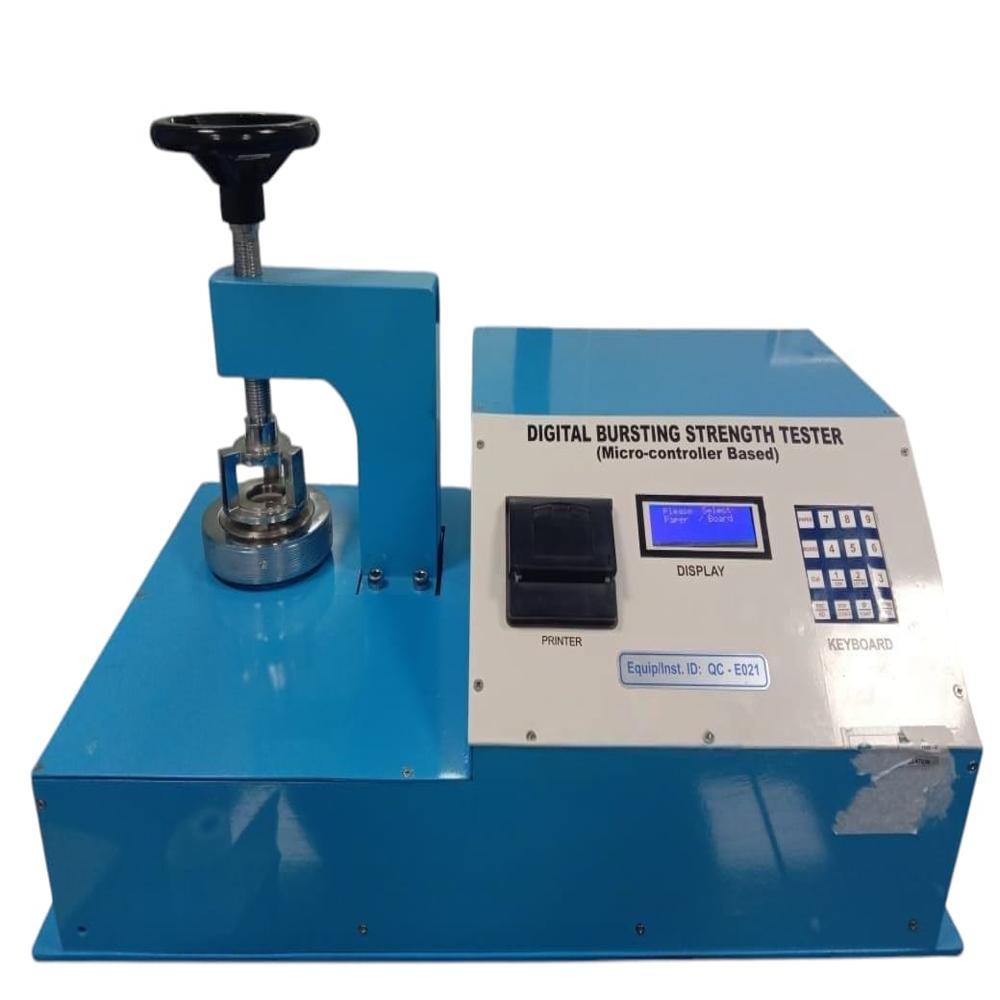

Bursting Strength Tester Digital Single Head with Printer

A Digital Single Head Bursting Strength Tester with Printer is an advanced laboratory instrument used to measure the bursting strength of materials such as paper, cardboard, corrugated sheets, textiles, and packaging materials. It combines digital measurement accuracy with instant printing of results for record-keeping.

---

Working Principle

1. The sample is clamped over a rubber diaphragm.

2. Hydraulic or pneumatic pressure is applied beneath the diaphragm.

3. The diaphragm expands until the sample bursts.

4. A digital sensor detects the maximum pressure applied.

5. The result is displayed on a digital screen and can be printed immediately via the built-in printer.

---

Main Components

Single Head Test Unit applies pressure to one sample at a time.

Rubber Diaphragm transmits uniform pressure to the material.

Digital Display shows bursting strength in kg/cm, psi, or kPa.
